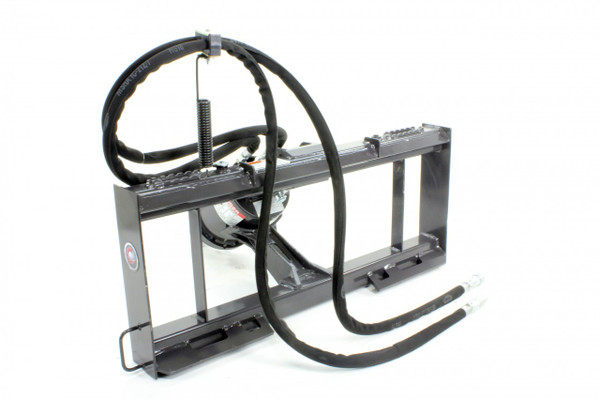

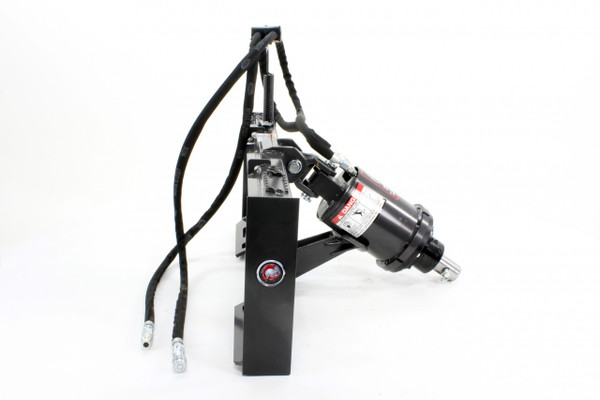

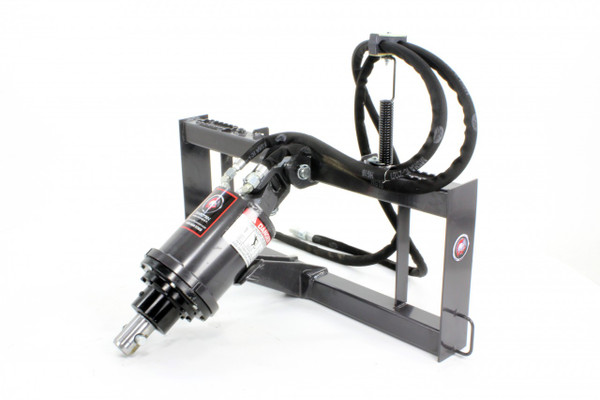

Auger Attachment 2.56" Round Drive Model SE1475

Price: $2,850.00
(No reviews yet) Write a Review
405.00 LBS
Calculated at Checkout

Calculate Shipping Cost

  • All SE75 Series Drive Units are engineered with our "In-Line" drive design, to eliminate chain and sprocket reductions and comes with a 5 Year warranty. A hydraulic motor drives the auger through a sealed planetary gear reduction. The heavy duty all gear design of our planetary drives gives these units a long life with minimal maintenance and service costs.
  • This unit is equipped for a Skid Steer loader and comes with a universal mounting plate, hoses, flat face couplers, cradle and spring hose kit assembly.
  • 10 to 25 GPM
  • Wide variety of auger diameters, lengths and style for every digging application
  • Extensions available for deeper digging
  • Various mounts available for most applications
  • We also offer drives for compact tractors, mini compact loaders, mini excavators, and telehandlers

Max. Auger Diameter 24" 30" 36" 36"
Hydraulic Flow Required 6-15 gpm 10-25 gpm 15-30 gpm 20-35 gpm
Min. Continuous Operating PSI 3000 psi 3000 psi 3000 psi 3000 psi
Max. Back Pressure 1500 psi 1500 psi 1500 psi 1500 psi
Output Torque (2000 psi) 1000 ft-lb 1600 ft-lb 1856 ft-lb 2308 ft-lb
Output Torque (2500 psi) 1277 ft-lb 2000 ft-lb 2328 ft-lb 2895 ft-lb
Output Torque (3000 psi) 1500 ft-lb 2377 ft-lb 2769 ft-lb 3451 ft-lb


5 Year on Manufacturer's Workmanship and Defects
Max. Auger Diameter:
Hydraulic Flow Required:
10-25 gpm
Min. Continuous Operating PSI:
3000 psi
Max. Back Pressure:
1500 psi
Output Torque (2000 psi):
1600 ft-lb
Output Torque (2500 psi):
2000 ft-lb
Output Torque (3000 psi):
2377 ft-lb
