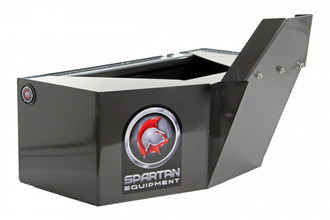

Skid Steer Concrete Chuter 3/4 Yard Capacity (Industrial Series)

Price: $2,783.00
(No reviews yet) Write a Review
SKU:
11075-0022
Weight:
461.00 LBS
Shipping:
Calculated at Checkout

Our Industrial Series Concrete Chuter is made for Skid-Steer loaders, Tractors and is the original design for carrying and placing concrete where cement trucks can't go.

  • Accurately place concrete without the mess.
  • 1/2 yd and 3/4 yd Models are available
  • Ruggedly built dispensing door with a tight-fitting seal for accurate multiple placements
  • A no spill top edge, squared off corners and powder coat finish make for an easy-to-clean concrete carrier
  • The Concrete Chuter is 54" wide so it can be picked up and transported in a standard 60” dirt bucket
  • Dimensions: 54”w x 25”h x 32”d – 390lbs 11” x 30” chute extension – 38lbs
  • Hydraulic dispensing door is operated from the skid steer
  • Universal mounting plate Cylinder, hoses and flat face couplers are included
  • Patented safety door is completely inaccessible to prevent accidental injury to those assisting
  • Superior quality and workmanship on the dispensing door will provides long life even under abusive conditions
  • Ideal for use in construction of backyard patios, pools or pouring into formed columns or walls
  • Use to accurately place sand mixtures, pea rock or other material

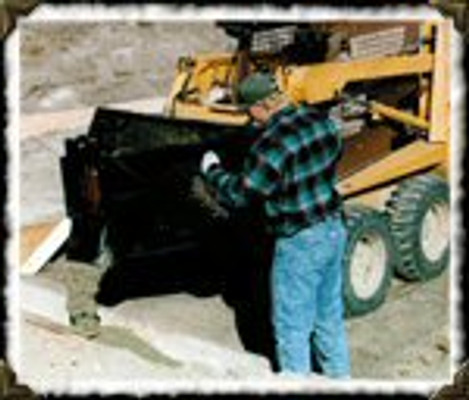

  • Dispense concrete at ground level or raise the Chuter to pour into formed columns or walls (loader determines the safe lifting capacity for concrete loads).



   1/2 yard  3/4 yard
 Weight  426 lbs  461 lbs
 Length  36"  38.5"
 Length with Extension  65.5"  68"
 Width  60"  60"
 Height  28"  30"
 Lift capacity Requirement  1500 lbs  3,200 lbs
 Hydraulic Requirements  2 way auxiliary  2 way auxiliary
2 Year Warranty on Workmanship and Defects
Parts Breakdown
Type: English PDF
Pages: 4
Capacity:
3/4 Yard
Weight:
461 lbs
Length:
38.5 in
Length with Extension:
68 in
Width:
60 in
Height:
30 in
Lift capacity Requirement:
3,200 lbs
