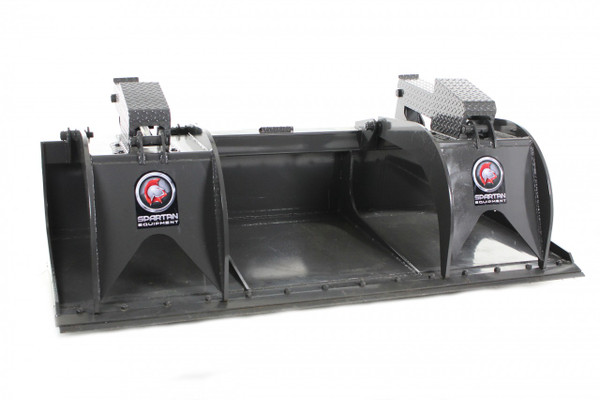

66" Skid Steer Grapple Bucket Attachment (Industrial Series)

Price: $3,900.00
(No reviews yet) Write a Review
SE66GBIS | 0
In Stock
1,030.00 LBS

Calculate Shipping Cost

Our Industrial Series grapple bucket attachment combines the loading and leveling actions of a skid steer bucket with the "grabbing ability" of two hydraulic grapples. This design is for skid steer and compact track loaders in the 65 HP range and above. The grapple bucket attachment's basic design allows it to load and grapple large and/or uneven objects as well as clean up the smallest debris. Our Industrial series grapple buckets feature enclosed cylinders, rod ends and hoses to protect against debris and stray limbs. We have also increased the depth of the bucket to 39"- giving it a larger loading capacity than ever before. Reinforced 1/2" ribbed bottom reduces bowing and wear of the grapple bucket. We use a 1/2" reinforced body and 5/8" tines. The Industrial Series grapple bucket gives you the most protection and the best durability in the most severe applications. The cylinders have a 2" bore and 10" stroke. We also protected the hydraulic lines by routing them inside of tubing to protect from falling debris and other wear and tear. Every pivot point has a grease fitting, and it comes standard with a 1" X 6" welded on cutting edge (may also add a reversible Bolt On Edge or bolt on side plates).

*Wear Items, Hoses, and Couplers are not covered under warranty




1 Year Warranty (does not cover wear items or hoses & couplers)
66 in
Operating Weight:
975 lbs
34 in
38.94 in
Grapple Opening:
44.97 in
2 in Bore 10 in Stroke
Cutting Edge:
1 in x 6 in
Tine Thickness:
5/8 in
Material Thickness:
1/2 in
4 in Square
Bucket Bottom:
.5 in
Bottom Wear Bars:
.5 in
If manual required please contact us
