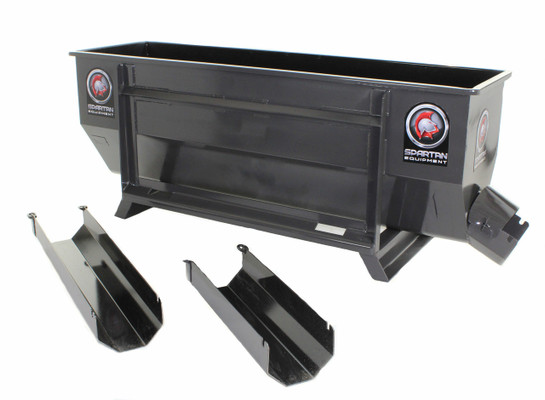

Our Professional Series Auger Bucket - Mixing and Discharge style unit is designed to auger for concrete, sand, washed gravel (3/4" max.), agricultural grains, and wildlife feed. Includes Two 24" multi-linked chutes and 7' hose kit with flat faced couplers.
Reach hard to maneuver fence lines with our Auger Bucket. Universal Skid Steer mounts both sides of the Auger Bucket, allows you to hook up to a skid-steer for right and left hand discharging. Fill the Auger Bucket with up to 1/2 yard concrete mix (or 3/4 yard with optional extension) and easily fill post holes. The Auger Bucket neatly fills post holes with no spillage. Engage the auxiliary hydraulics for accurate and controlled discharge of the concrete. Turning the auger forward discharges the material. This Auger Bucket is equipped with 6.5" diameter Auger that has rubber flighting to mix and discharge — concrete (up to 1 in slump), as well as Wildlife Feed and Agricultural Grains materials wet or dry. It is designed with no discharge gate and with the ability to self-load from loose piles, making our Auger Bucket a true one-person operation. mixing dispensing auger and the sand dispensing auger. There is no need to wheelbarrow and shovel concrete to post holes that are difficult to reach. The Auger Bucket is operated by one person who can easily move from hole to hole. Cleaning is easy, run the auger until all of the concrete material is gone, reverse the auger and spray with a hose. The Spartan Auger Bucket makes putting up fence posts easy.
This unit comes equipped with a skid steer universal Quick attach frame on either side allows right or left-hand discharge.
Self loading from loose piles (only with cutting edge added) and excellent operator visibility for One-person operation. Two 24" Long multi-linked chutes included.
1/2 yard capacity 13.5 cubic ft. 18 bags (80 lbs. ea.) capacity of premix concrete. 3/4 yard capacity 20 cubic ft. 25 bags (80 lbs. ea.) capacity with optional hopper extension.
Accurate and controlled discharge - 1/2 yard in 28 seconds at 24 gpm
Horizontal auger with Rubber flighting and hydraulic motor drive up to 12-24 gpm at 3500 psi
Universal skid-steer attachment
*Wear Items, Hoses, and Couplers are not covered under warranty

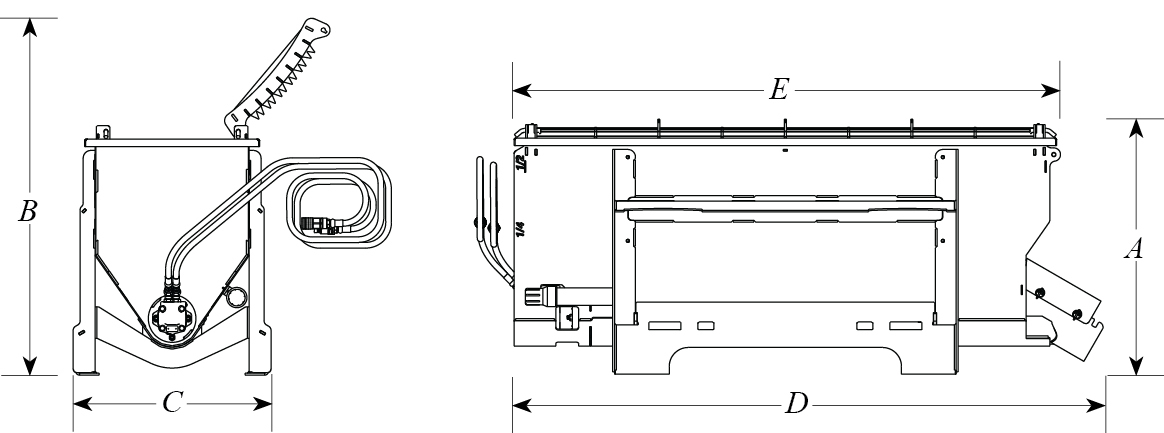

A. Height, Grate Lowered 33.5 in
B. Height, Grate Open 47 in
C. Overall Width 26 in
D. Overall Length 77.4 in
E. Overall Hopper Length 71.3 in
Auger Diameter with Rubber 6-1/2"
Auger Flighting Spacing 4"
| Capacity | 1/2 Yard (13.5 cubic ft.) |
| Capacity With Optional Extension | 3/4 Yard (20 cubic ft.) |
| Concrete Mix Capacity (80-lb bags) 1/2 Yard | 18 |
| Concrete Mix Capacity (80-lb bags) 3/4 Yard | 25 |
| Dispense Rate | 28 seconds at 24 gpm |
| Height, Grate Lowered | 33.5 in |
| Height, Grate Open | 47 in |
| Overall Width | 26 in |
| Overall Hopper Length | 77.4 in |
| Auger Diameter Steel | 6.12 in |
| Auger Length | 60 in |
| Center Column Diameter | 1.32 in O.D. | .18 in wall |
| Flighting Spacing | 4 in |
| Weight | 620 lbs |
