Our Spartan Mini Skid Steer Roto Bore Attachment is an excellent choice for boring utilities under driveways and sidewalks. This unit will allow you to bore from 1.25 to 3.5 inches up to 19" below grade. This unit has a working width of 6" and increases productivity by allowing you to keep rods in a horizontal digging position in the toughest soil conditions. Optional shorter rod lengths (Call for additional pricing) and the ability to lower the bore head below grade allow you to work in both confined and open areas.
*Wear Items, Hoses, and Couplers are not covered under warranty
Please note the design difference for the Bobcat MT mount unit

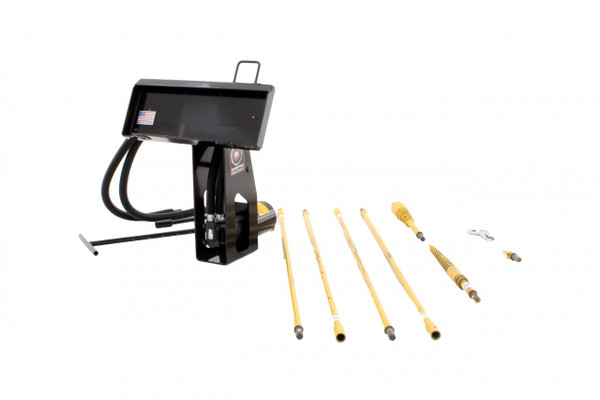

This unit comes complete with universal Toro Dingo, Vermeer, Ditch Witch mounting, hoses, couplers, rod and reamer kit ((4) 5-ft drill rods, (1) 1-3/4" boring bit, (1) 2-1/2" back reamer, Uncoupling tool, Swivel Shark, Spring pin repair kit).
Kit includes the following items:
Qty Part Number Description
1 (SE98-8273) 3/4" Boring Head With 13/16" Hex Coupler
1 (SE98-8274) 1/2" Back Reamer With 13/16" Hex Coupler
1 (SE98-8275) Repair Kit 13/16" Hex Coupler Hardware
1 (SE98-8276) Uncoupling Tool
1 (SE98-8277) Swivel Shank With 13/16" Hex Coupler
4 (SE98-8278) 5FT Long Solid Steel Boring Rods With 13/16" Hex Coupler
Optional Bits and Reamers (Must Call 1.888.888.1085 to place order for these items separately)
Part Number Description
(SE100-4752) 1-1/4" Boring Bit With 13/16" Hex Coupler
(SE100-4753) 1-7/16" Boring Bit With 13/16" Hex Coupler
(SE100-4754) 2" Boring Bit With 13/16" Hex Coupler
(SE100-4755) 2-1/2" Boring Bit With 13/16" Hex Coupler
(SE100-4756) 2" Back Reamer With 13/16" Hex Coupler
(SE100-4757) 2-7/8" Back Reamer With 13/16" Hex Coupler
(SE100-4758) 3-1/4" Back Reamer With 13/16" Hex Coupler
(SE100-4759) 3-1/2" Back Reamer With 13/16" Hex Coupler
(SE100-4760) 4-1/2" Back Reamer With 13/16" Hex Coupler
