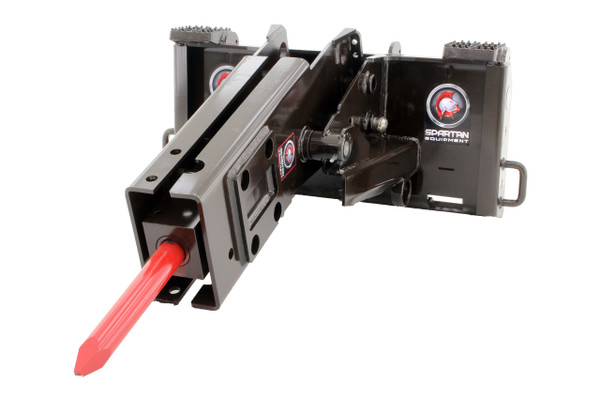

Skid Steer Concrete Breaker Attachment Model SE500

Price: $7,900.00
(No reviews yet) Write a Review
SKU:
SE237500M-0022
Condition:
New
Weight:
1,120.00 LBS
Shipping:
Calculated at Checkout

SE500 Series Hydraulic Concrete Breaker:

Features and Benefits:

  • Ideal for mini-excavator, compact utility loaders and many skid-steer loader applications
  • No back head charging required
  • Ideal for mini-excavators, compact utility loaders and some skid-steer loader applications

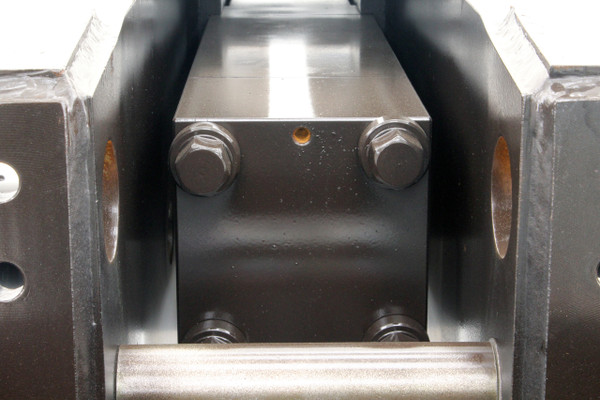

  • CD designed side bolt threads provide even load distribution and greater surface contact between the nut and bolt reducing the chances of thru-bolt failure
  • Increased front head wall thickness for added service life
  • Increase in back head pressure results in 25% greater impact energy
  • All Spartan Concrete hammers come complete with Moil Point, Two Position Universal Skid Steer Mount, (1) Spare Seal Kit with Hydraulic Hoses and Flat Face Couplers.




1 Year Limited Warranty
Impact Energy Class:
500 ft lb
Operating Weight:
1120 lbs
Length With Tool:
69 in
Overall Width (Included D Ring):
51 in
Working Steel Diameter:
2.63 in
Blows Per Minute (variable):
640 - 1470
Oil Flow Range:
10 - 21.9 gpm
Operating Pressure Range:
1,595 - 2,117 psi
Relief Pressure:
2,310 - 2,610 psi
Recommended Machine Carrier Range:
5,000 - 13,500 lbs
