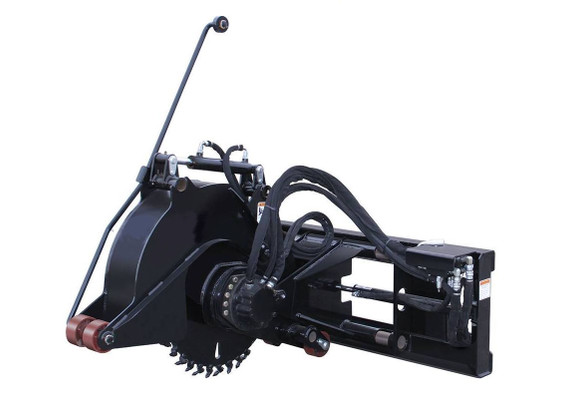

Skid Steer Pavement Saw 1.5" Wide Cut Standard Flow

Price: $18,900.00
(No reviews yet) Write a Review
SKU:
SE901196
Condition:
New
Weight:
1,300.00 LBS

Calculate Shipping Cost

The Pavement Saw is a cost effective alternative to a more cumbersome self-propelled saw unit. With its powerful planetary/motor combination, the 9” cutter wheel depth is ideal for cutting patches, expansion joints and pavement cuts for utility and traffic loops. Planetary drive motor and tungsten carbide teeth eat through asphalt and hard surfaces with ease. The patented electro-hydraulic side-shift enables the Carbide Bullet Tooth to cut close to walls, curbs and other fixed objects.
  • Adaptable to all skid steer loaders with high flow hydraulic capacity and replaces more cumbersome self-propelled saw units
  • 9” cutting depth is ideal for cutting patches and expansion joints and making pavement cuts for utility lines and traffic loops
  • Electro-Hydraulic side-shift enables the saw to cut close to walls, curbs, and fixed objects
  • Built-In shroud retracts as cutting depth increases
  • Optional Universal Joystick Controller or Brand Specific 14, 8 Pin Electrical harness kit
1 Year Limited Warranty
Minimum Flow Rate:
22 GPM
Maximum Flow Rate:
40 GPM
Maximum Speed:
180 RPM
Minimum Operating Pressure:
2,800 psi
Maximum Pressure:
5,500 psi
Maximum Power Output:
60
Maximum Torque:
5,000 lb-ft
Number of Teeth:
36
Width of Cut:
1.5 in
Depth of Cut:
9 in
Depth Control:
Hydraulic
Side-Shift Distance:
24 in
Side-Shift Control:
Hydraulic
Overall Width:
67 in
Overall Length:
59 in
Overall Height:
40 in
Overall Weight:
1,300 lbs
If manual required please contact us
