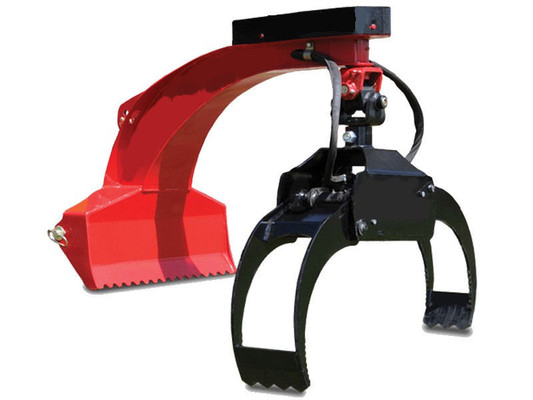

Multi Purpose Grapple (3 Point Hitch Manual Rotating)

Price: $3,570.00
(No reviews yet) Write a Review
SKU:
SEG320S
Weight:
350.00 LBS
Shipping:
Free Shipping

Multi-Purpose Grapple for Tractor with CAT 1 3 Point Hitch Mount

When lifting and handling is required, trust the strength and agility of our Tractor Multi-Purpose Grapple. Load, unload and transport timbers, bolders, utiltiy poles or any item you can clamp up to 3000 lbs. quickly and easily. Built specifically for skidsteers, the Multi-Purpose Grapple is ideal for sawmill operators that need precision handling and controlled movement of heavy, awkward items.


Bypass grapple
BYPASS GRAPPLE
Thick or thin, the grapple’s tines fold together holding tight anything from 3 inches to 48 inches in diameter.
Bypass grapple
CANTILEVER CRADLE
Leverage your load without losing control using the serrated cradle that steadies the logs in-line for straight-on loading or transport.
Bypass grapple
SPRING CENTERED GRAPPLE WITH LOCKING POSITIONS
Spring Centered Return Lateral Lock In-line Lock
Rotates up to 180 degrees (90 degrees in either direction). The spring brings it back to the home position. Note – the hydraulic cylinder opens and closes the grapple but doesn’t turn the grapple on the 3 point hitch models.



CANTIL
1 Year Warranty
Grapple Opening :
3 in to 48 in
Object Diameter:
4 in to 46 in
Hydraulic Pressure:
3000 psi
Rotating Degree:
180°
Rotation Operation:
Manual
Lifting Capacity:
3,000 lbs
Height:
32 in
Overall Width:
29 in
Overall Length:
41 in
Weight:
350 lbs
