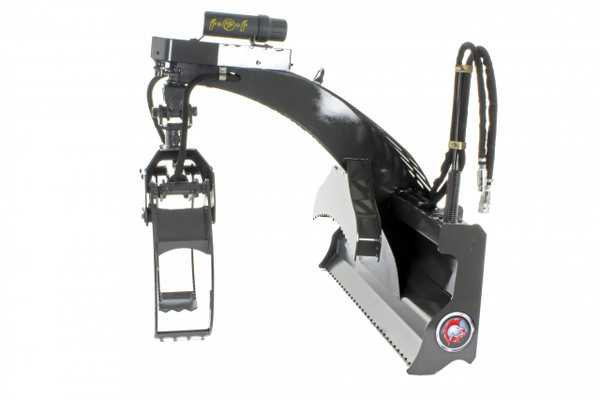

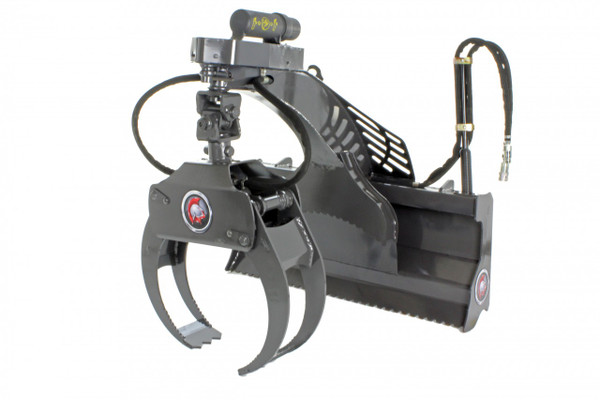

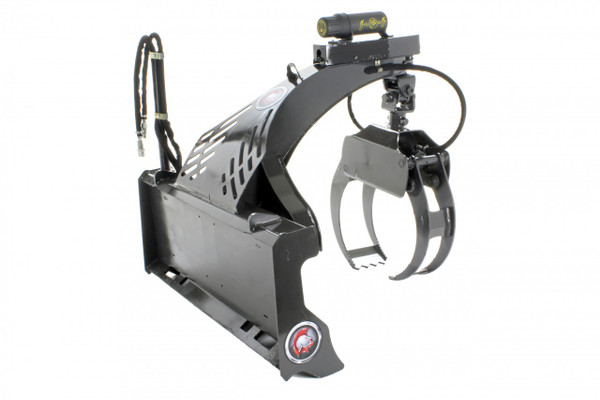

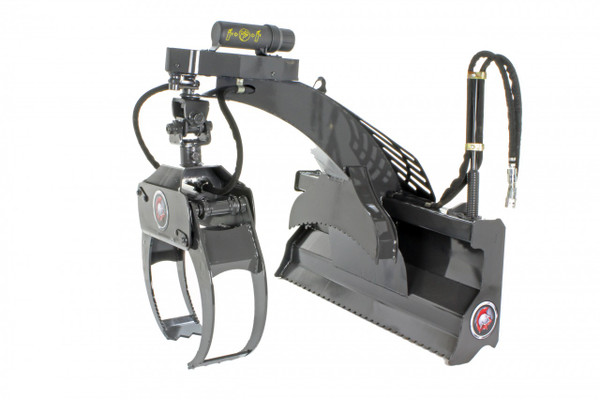

Skid Steer Multi-Purpose Grapple SE420M (Manual Rotating)

Price: $8,400.00
free ground shipping
(No reviews yet) Write a Review
SKU:
SEG420M
Condition:
New
Weight:
650.00 LBS

Calculate Shipping Cost

Multi-Purpose Grapple for Skid Steer Loader

When lifting and handling is required, trust the strength and agility of our Skid Steer Multi-Purpose Grapple. Load, unload and transport timbers, boulders, utility poles or any item you can clamp up to 3,000 lbs quickly and easily. Built specifically for Skid Steers, the Manual Log Grapple is ideal for sawmill operators that need precision handling and controlled movement of heavy, awkward items. Rotates up to 180 degrees (90 degrees in either direction). The spring brings it back to the home position.

Leverage your load without losing control using the serrated cradle that steadies the logs in-line for straight-on loading or transport. Thick or thin, the grapple’s tines fold together holding tight anything from 3 inches to 48 inches in diameter. Note – the hydraulic cylinder opens and closes the grapple but doesn’t turn the grapple on the 3 point hitch models. Spring centered return lateral lock in-line lock.

*Wear Items, Hoses, and Couplers are not covered under warranty

1 Year Warranty (does not cover wear items or hoses & couplers)
Grapple Opening:
3 in to 48 in
Object Diameter:
4 in to 46 in
Hydraulic Pressure:
3000 psi
Rotating Degree:
180°
Rotation Operation:
Manual
Lifting Capacity:
3,000 lbs
Height:
34.5 in
Overall Width:
60 in
Overall Length:
81 in
Weight:
650 lbs
If manual required please contact us
