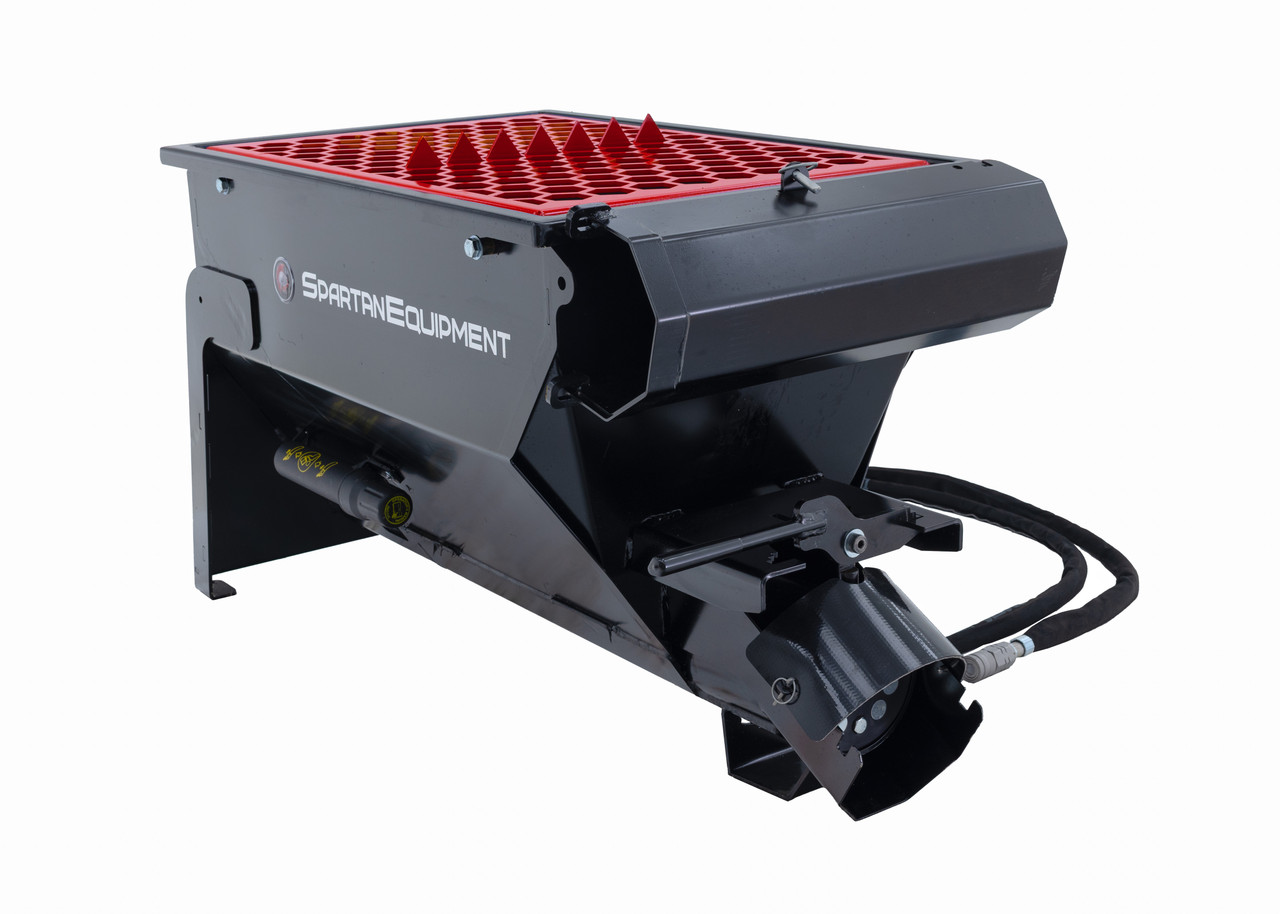

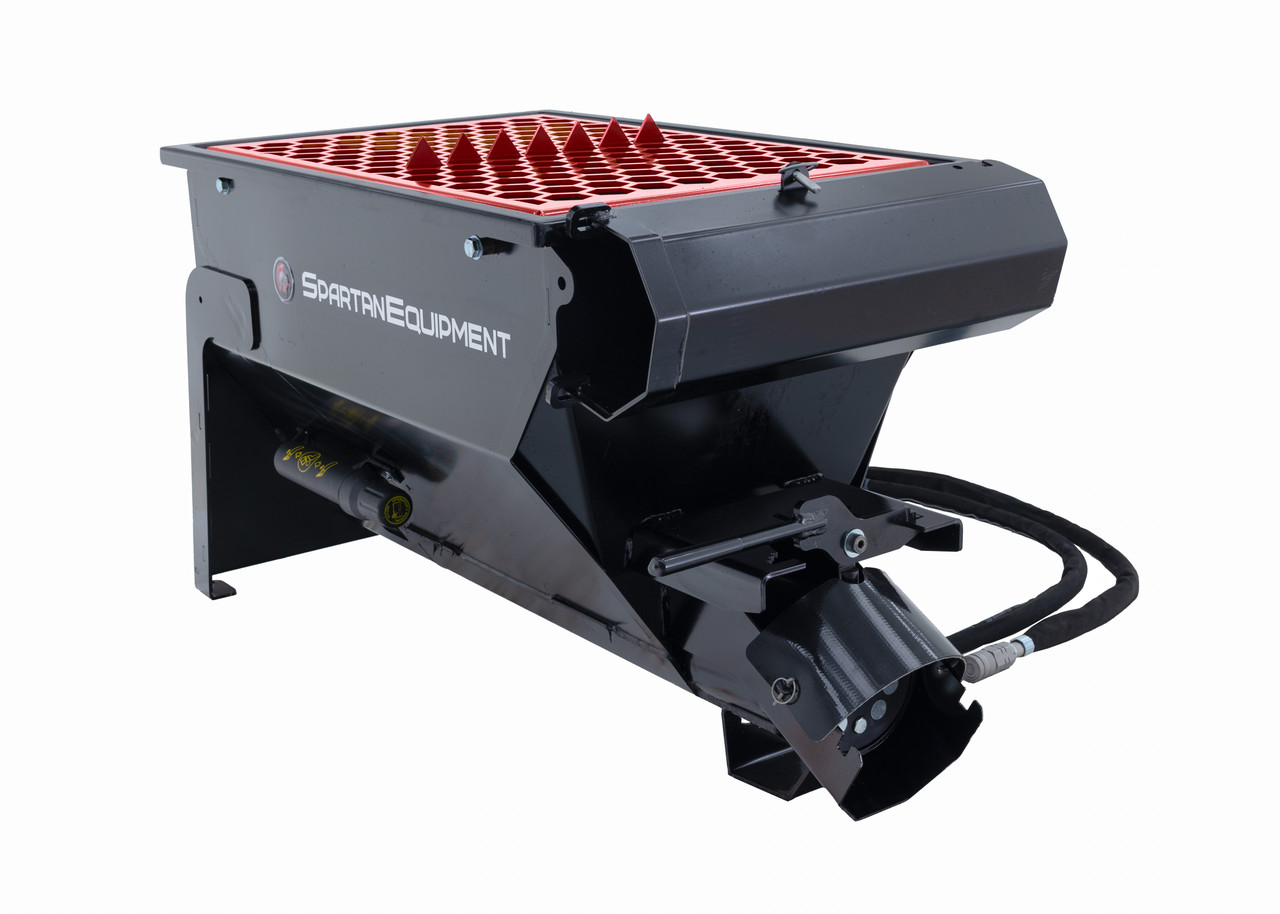

The Spartan Mini Skid Steer Concrete Mixer is a unique attachment that will mix and pour up to 1/4 Yard (6.75 cubic feet) of Concrete, Sand, Wildlife/Agricultural Grains. The specially designed auger flighting inside the bowl keeps the concrete in the bowl during mixing. When mixing you will want to rotate the auger clockwise and counter-clockwise to properly mix the material. The 6.5" diameter auger permits concrete (up to a 1" slump) to be poured for flat pours or into fence post holes with the 24" extension chute directly into post-holes while pole is in place! This unit doubles as and mixing and discharging attachment for concrete, sand as well as dispensing Wildlife/Agricultural gains. Its hybrid auger made of steel and rubber edge ensures efficient mixing while minimizing material seepage. This unit is an excellent choice to be used in basements, backyards, under ground, between houses and other tight spaces where larger machines are unable to access. Rubber sealing on the manual gate keeps material contained throughout operation. For easy loading of bagged material, the safety grate has integrated bag-busters. This discharge open/close gate is operated manually and can be locked in various positions.
This unit comes complete with 6.5" diameter auger, mini universal mounting plate, safety grate, including integrated bag buster for ease of loading material, 24" extension chute, hydraulic hoses with 1/2" flat face couplers.
This unit is available with either the universal mount or Bobcat MT mounting system. Must choose mount before adding to the cart.
*Wear Items, Hoses, and Couplers are not covered under warranty
| Capacity | 1/4 Yard (6.75 cubic feet) |
| Concrete Mix Capacity (80 lbs Bags) | 9 |
| Dispense Rate at 24 gpm | 14 seconds approx |
| Hydraulic Requirements | 10-24 gpm |
| PSI Max | 3500 psi |
| Auger Diameter | 6.12 in |
| Flighting Spacing | 4 in |
| Center Column Diameter | 1.32 in O.D. | .18 inWall |

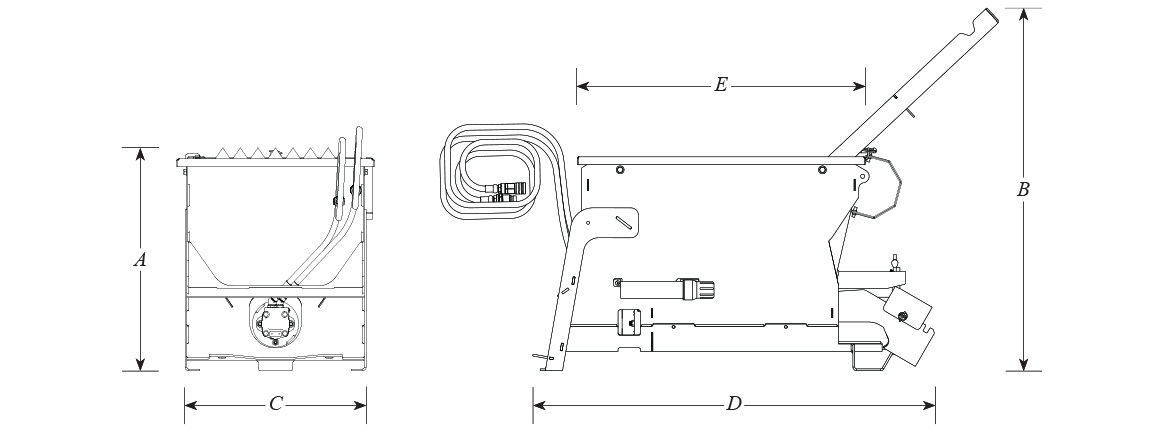

| Overall Width with Universal Mount | 24.5 in |

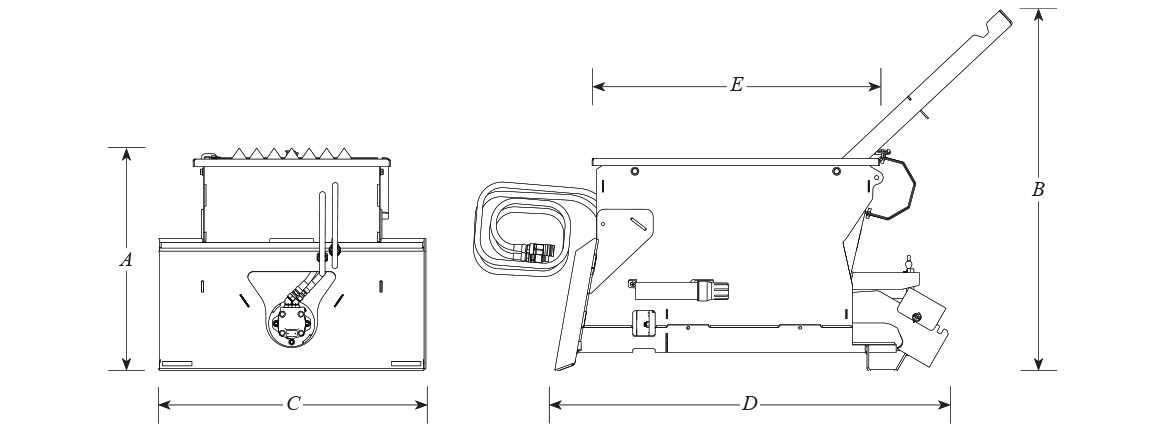

| Overall Width with Bobcat MT Mount | 36.5 in |
| Overall Height | 36 in |
| Overall Height Gate Open | 48.5 in |
| Overall Length | 54 in |
| Operating Weight | 370 lbs |
