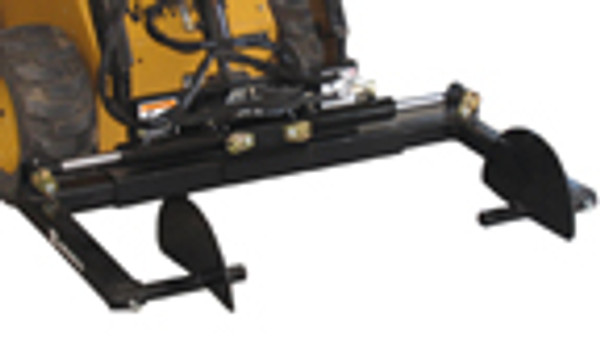

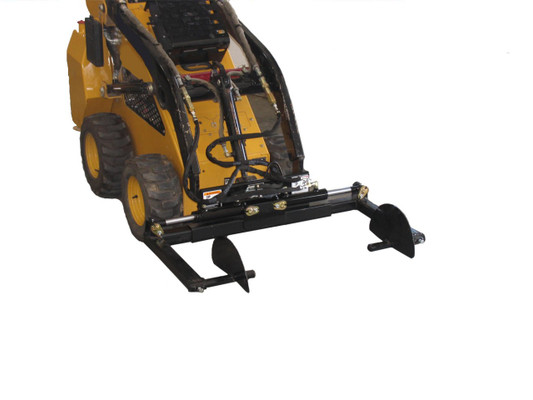

• Adjusts to lay sod rolls from 24” to 36” wide and holds up to 800 lb capacity
• Heavy duty construction and hydraulic clamping
• Optional tank lawn roller (water weighted) (Must Add Prior to Cart Out)
• Optional bolt-on bracket for 42” sod Roller
• 1,500 to 3,000 operating pressure (psi)
LAWN ROLLER OPERATING TIPS
When using the lawn roller we recommend making a forward pass and then
driving back over the same path to smooth out any skid-steer tracks.
Due to the weight of the roller, and to minimize lawn damage, before turning lift
the roller and rotate it down, toward the front of the skid-steer.
When moving to a new location, lift the roller drum and rotate it down toward the
front of the skid-steer. This will keep the weight close to the skid-steer and give you
1. Remove the pipe plug and fill the roller drum with water to the desired level.
2. Loosen the .50” x 1.00 “ cap-screw securing the discs to the arms and remove the
disc’s from the sod layer.
3. Extend the arms until there is a minimum of 45” between the left and right arm.
4. Position the arms on each side of the drum. See Figure #1
5. Position the discs with the longest length of shaft to the inside and install them
through the attachment and into the drum. Tighten the .50” x 1.00” cap-screw to
secure the in place. See Figure #1
NOTE: Drum weight without water is approximately 65 lbs.
Fill Plug Location Approximate Weight
1 o'clock 724 lbs.
2 o’clock 602 lbs.
3 o’clock 406 lbs.
4 o’clock 214 lbs.
5 o’clock 103 lbs.
If manual required please contact us
