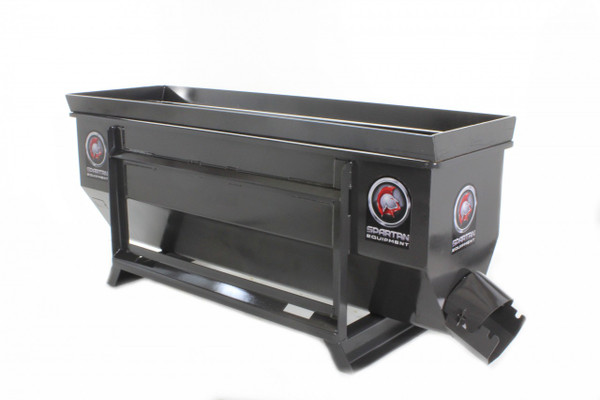

Skid Steer Auger Bucket - Mixing & Discharging With Heavy Service Motor

Price: $8,950.00
free ground shipping
(No reviews yet) Write a Review
SKU:
SE11003 | 0
Condition:
New
Availability:
In Stock
Weight:
380.00 LBS

Calculate Shipping Cost

Our Professional Series Auger Bucket - Mixing and Discharge style with Heavy Service Motor is for use with heavy or dry materials in extreme applications. This unit is designed to auger for concrete, sand, washed gravel (3/4" max.), agricultural grains, and wildlife feed. Includes multi-linked chutes (24" & 36" long) and 7' hose kit with flat faced couplers.



Reach hard to maneuver fence lines with our Auger Bucket. Quick-tach mounts on the front and back of the Auger Bucket allows you to hook up to a skid-steer for right and left hand discharge. Fill the Auger Bucket with up to 1/2 yard concrete mix (or 3/4 yard with optional extension) and easily fill post holes. The Auger Bucket neatly fills post holes with no spillage. Engage the auxiliary hydraulics for accurate and controlled discharge of the concrete. Turning the auger forward discharges the material. There are three augers to choose from — concrete dispensing auger, mixing dispensing auger and the sand dispensing auger. There is no need to wheelbarrow and shovel concrete to post holes that are difficult to reach. The Auger Bucket is operated by one person who can easily move from hole to hole. Cleaning is easy. Run the auger until all of the concrete material is gone, reverse the auger and spray with a hose. The Spartan Auger Bucket makes putting up fence posts easy. This unit comes equipped with a skid steer universal Quick attach frame on either side allows right or left-hand discharge.



Self loading from loose piles (only with cutting edge added) and excellent operator visibility for One-person operation. Two multi-linked chutes (24" & 36" long) included.



1/2 yard capacity is 22 bags (80 lbs. ea.) of premix concrete. 3/4 yard capacity capable with optional hopper extension.

Accurate and controlled discharge - 1/2 yard in 50 seconds

Horizontal auger with Rubber flighting and Eaton hydraulic motor drive

Replaceable protective rubber flighting prevents binding of coarse material.

Universal skid-steer attachment

*Wear Items, Hoses, and Couplers are not covered under warranty


















Overall Height                                    (A) 27"

Overall Width                                     (B) 21-1/2"

Overall Length                                   (C) 74-1/2"

Overall Bucket Length                        (D) 68-1/2"

Weight                                                380 lbs.

Hydraulic Requirements             12 GPM 2000 PSI

Auger Length                                     61-1/2"

Auger Diameter without Rubber             4"

Auger Diameter with Rubber              6-1/2"

Auger Flighting Spacing                       4"

1 Year Warranty (does not cover wear items or hoses & couplers)
If manual required please contact us
